Voxa Harmonia – az eredeti faerezetes címlapkép

Instruments, technology and preservation

Instrument building and preservation

The name joins two ideas: Vox, meaning voice, and Doxa, meaning glory. Instrument building, restoration and modern technology in one workshop.

Workshop and development

Classical instruments, carefully considered technology

Instrument building and restoration

Building, tuning, repair and modernisation of organs, pianos, harmoniums and electronic instruments.

ModSystem

A modular, expandable and repairable system for digital, virtual and MIDI instruments.

Custom design

Coordinated design and implementation of mechanics, electronics, amplification, consoles and cases.

mezzoPIANO

The independent mezzoPIANO site presents the story and models of the hybrid pianos.

Visit mezzoPIANO

ModSystem

Current product catalogue

MODSYSTEM / HYBRID ORGAN

New: hybrid-organ driver modules

From the console to real pipe magnets: the Driver controller, isolated Gateway and local power boards have distinct roles. The six new modules are in development; complete system firmware and physical validation remain to be finalised.

Ctrl Module Driver → Organ Bus Gateway → isolated RS-485 branch → Magnet / Stop / Slider / Motor nodes. Each power bank needs a local, separately fused DC supply.

Hall Velocity 1/8/12 → 88 Velocity Base (Pico 2) → USB-MIDI → computer. Separate 5 V/2 A adapter; star-wired 3.3 V Hall-board supplies, separate from signal headers.

Every PCB-mounted component, including separately procured ICs, MOSFETs, Pico modules, capacitors and connectors, with assembly. External magnets, motors, supplies, braking resistors, cooling, mechanics and installation are separate peripherals. Development-module prices are planned and availability must be confirmed.

ModSystem →

Two Anti-pop versions, different control

Both fit into the analogue audio path between the audio interface and amplifier. They differ in how timing and muting are controlled.

Anti-pop · hardware delay

The earlier, simpler version enables audio using a hardware timer, without a control application.

  • Hardware startup delay; not configurable in software.
  • Senses USB 5 V presence, without USB data communication. Requires a separate 12 V supply.
  • Responds when the USB signal disappears; no advance muting coordinated with the operating system.
Version details

Anti-pop USB · software control

The computer-controlled version uses an application to set the delay and issue muting commands.

  • Startup delay is adjustable in the control application.
  • USB provides power and control, with software for Windows and Ubuntu Studio.
  • The software can mute the audio path before a normal system shutdown.
Version details

Shutdown performance depends on the timing of the complete audio system. The hardware version receives no advance software shutdown command; the software version requires its control application to be correctly installed and running.

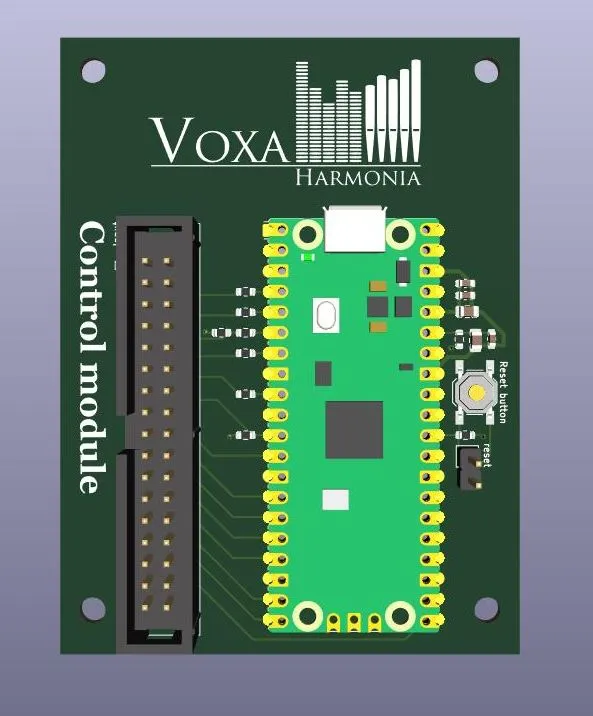

Ctrl Module — PCB illustration

Central control

Ctrl Module

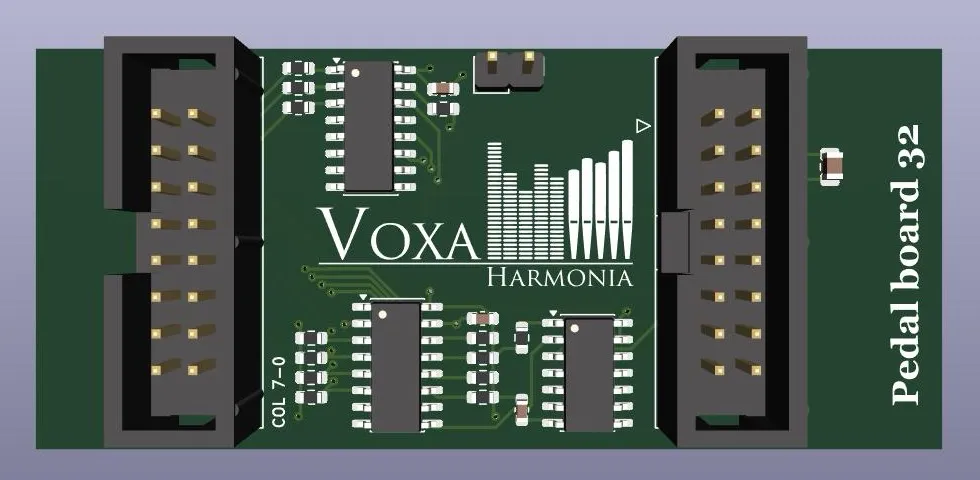

The updated central ModSystem controller brings together five manuals, a pedalboard and the stop/LED/expression module, communicating with the computer through the Pico USB connection.

Details
88 Velocity Base — PCB illustration

88-key velocity system

88 Velocity Base

Standalone Pico 2 USB-MIDI piano controller for up to 88 analogue Hall signals. Hall Velocity 1/8/12 boards connect directly; no separate Ctrl Module is required.

Details
Hall Velocity 1 — 3D design view 3D design view

88-key velocity system

Hall Velocity 1

A board with 1 analogue Hall sensor for magnetic key-motion sensing. Outputs connect to the analogue inputs of 88 Velocity Base.

Details
Hall Velocity 8 — 3D design view 3D design view

88-key velocity system

Hall Velocity 8

A board with 8 analogue Hall sensors for magnetic key-motion sensing. Outputs connect to the analogue inputs of 88 Velocity Base.

Details
Hall Velocity 12 — 3D design view 3D design view

88-key velocity system

Hall Velocity 12

A board with 12 analogue Hall sensors for magnetic key-motion sensing. Outputs connect to the analogue inputs of 88 Velocity Base.

Details
Control Module Driver — PCB illustration

Central control

Control Module Driver

The central ModSystem controller built around a Raspberry Pi Pico. It connects manuals, a pedalboard and the stop module, with separate driver-bus connections.

Details
Control Module LED — 3D design view 3D design view

LED control

Control Module LED

A dedicated USB-MIDI controller for daisy-chained LED Driver 64 boards. It converts computer MIDI messages into LED-driver control signals.

Details
LED Driver 64 — 3D design view 3D design view

LED driving

LED Driver 64

A driver board for 64 individual LED channels, using four TLC5925 constant-current ICs. BUS_IN and CHAIN_OUT allow daisy-chaining to further boards.

Details
Manual 64 Hall — PCB illustration

Keyboard – digital Hall

Manual 64 Hall

A manual board for 64 individual digital Hall sensors. Magnetic key sensing provides contactless on/off states to the central controller.

Details

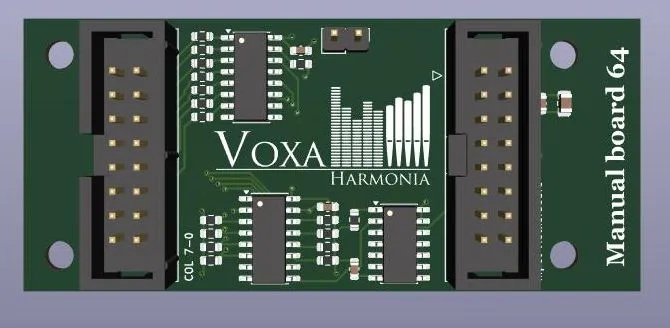

Manual 64 Reed — 3D design view 3D design view

Keyboard – switch matrix

Manual 64 Reed

A manual board that reads an 8×8 switch matrix for reed-switch or other suitable contact keyboards. The matrix accepts 64 switching points.

Details
Manual 64 Velocity — PCB illustration

Keyboard – analogue Hall

Manual 64 Velocity

A board sampling 64 analogue Hall inputs to track key movement. Central-controller firmware can derive key velocity from the 12-bit ADC’s raw samples.

Details

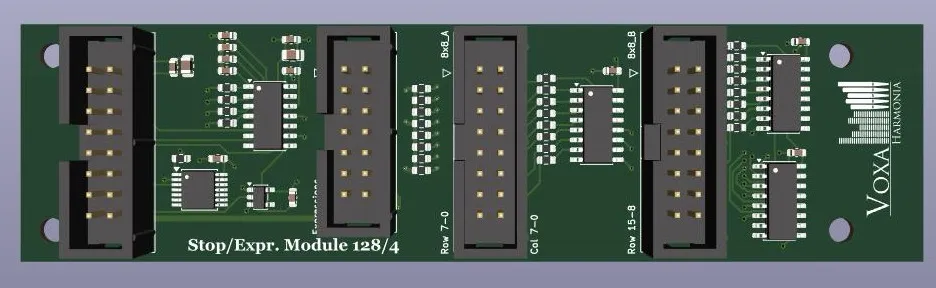

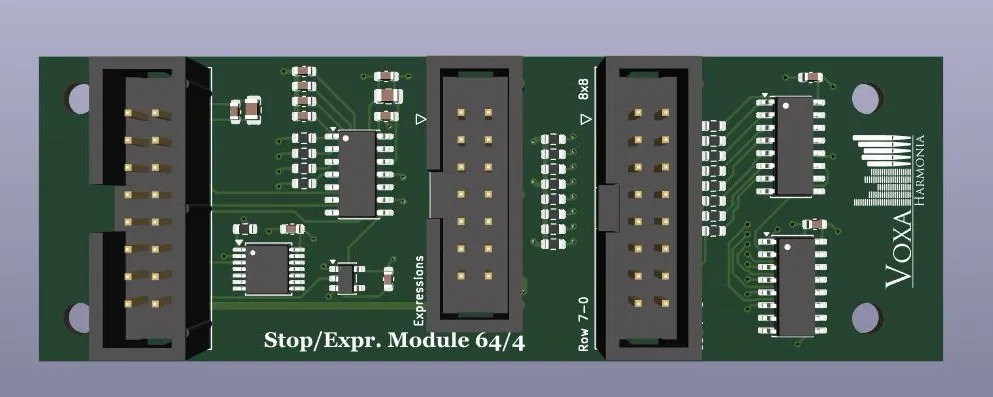

Stop Expression 128 — 3D design view 3D design view

Stops and expression

Stop Expression 128

A module for stop switches and four analogue expression controls. It forwards switch-matrix and pedal signals to the central controller.

Details
Stop LED Expression 192 — 3D design view 3D design view

Stops, LEDs and expression

Stop LED Expression 192

A board combining three 8×8 stop banks, LED feedback and four expression inputs. A single module handles switch scanning and illuminated stop indication.

Details
8×8 Scan Matrix LED — 3D design view 3D design view

LED-matrix connections

8×8 Scan Matrix LED

An 8×8 row–column connection board for an LED matrix. IDC connectors provide organised wiring for 64 matrix positions.

Details

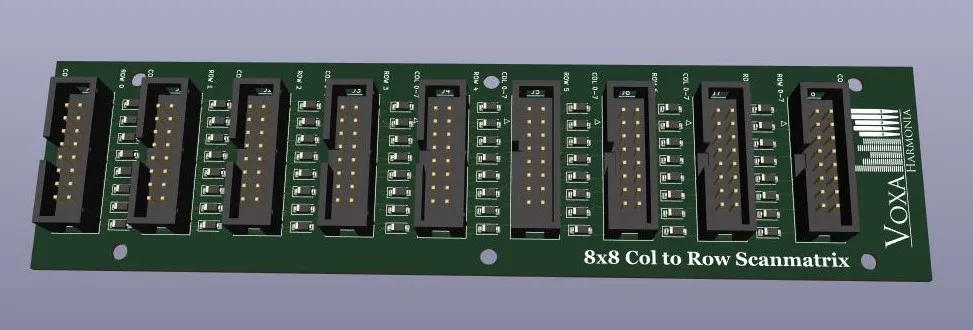

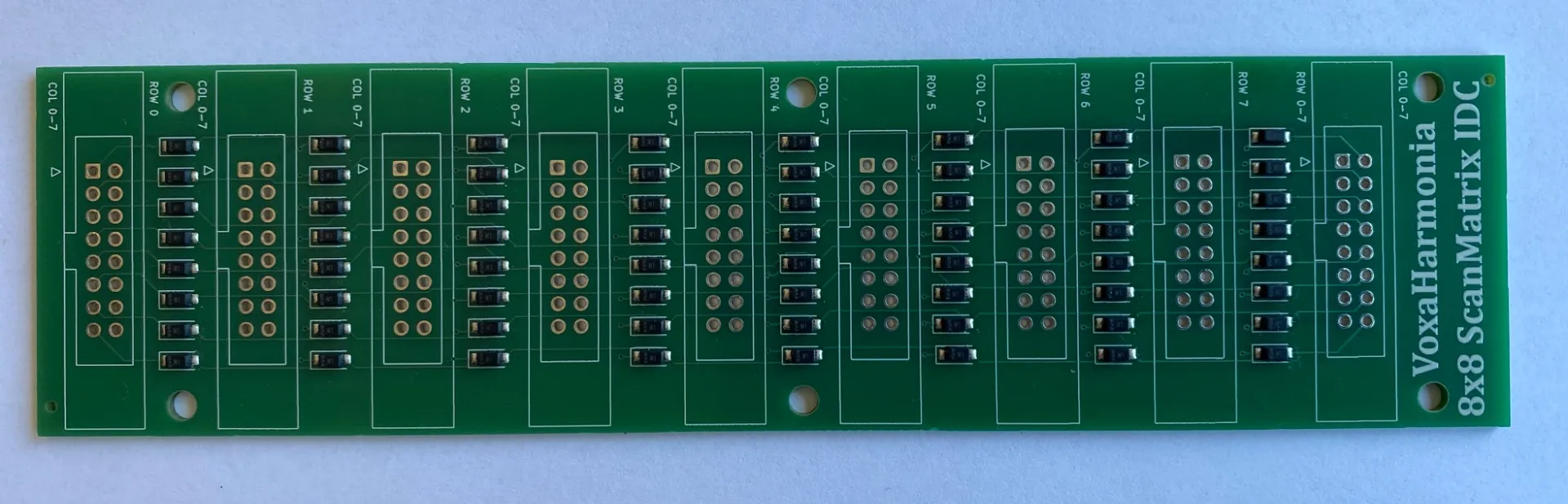

8×8 Scan Matrix – diode — 3D design view 3D design view

Switch matrix

8×8 Scan Matrix – diode

A Col-to-Row matrix board organising 64 switching points. Individual 1N4148W diodes provide isolation within the switch network.

Details
Organ Bus Gateway — PCB illustration

Hybrid organ · power control

Organ Bus Gateway

In development · planned board

Gateway between the ModSystem Driver controller and four galvanically isolated RS-485 field-bus branches. One gateway can serve multiple daisy-chained magnet and actuator boards.

Details
Organ Magnet 64 — PCB illustration

Hybrid organ · power control

Organ Magnet 64

In development · planned board

64 independent low-side outputs for common-positive DC note magnets. Designed for smaller electro-pneumatic note magnets.

Details
Organ Magnet 32 HD — PCB illustration

Hybrid organ · power control

Organ Magnet 32 HD

In development · planned board

32 independent low-side outputs for common-positive DC note magnets. HD version for higher-current coils.

Details
Organ Stop 16 — PCB illustration

Hybrid organ · power control

Organ Stop 16

In development · planned board

Node designed to control 16 dual-coil stop-action magnets with ON/OFF pulses. Drawknob mechanics are separate peripherals.

Details
Organ Slider 4 — PCB illustration

Hybrid organ · power control

Organ Slider 4

In development · planned board

Power node designed for pulse control of four larger dual-coil stop or slider actuators, with individual bank protection and a defined thermal envelope.

Details
Organ Motor 4 — PCB illustration

Hybrid organ · power control

Organ Motor 4

In development · planned board

Node designed for four bidirectional DC motors driving swell shutters or other organ actuators, with provisions for limit and position feedback.

Details
Anti-pop · hardware delay — PCB illustration

Audio and muting

Anti-pop · hardware delay

The earlier, simpler Anti-pop module delays stereo audio enable with a hardware timer. No control application is required and the delay is not software-configurable.

Details
Anti-pop USB — PCB illustration

Audio and muting

Anti-pop USB

Software-controlled USB stereo muting module for computer-based instruments. The control application provides an adjustable startup delay and can mute audio before normal system shutdown.

Details
